Automatic cosmetic lip gloss filling and capping machine

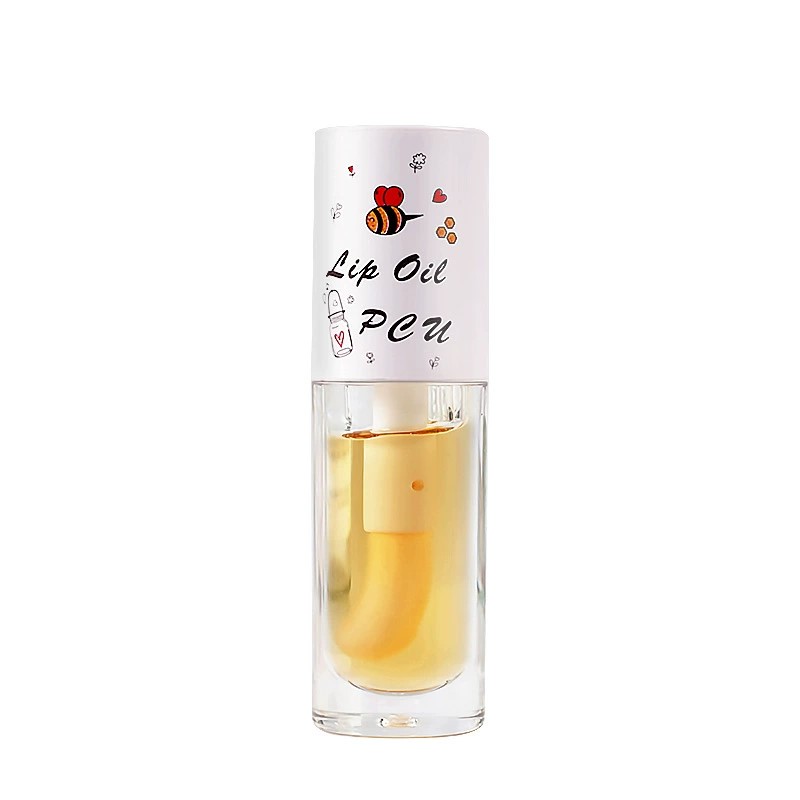

1.Target Products

2.Descriptions

• Automatic loading bottles into pucks, and with a guider, adjusts the bottle direction
• Automatic filling, hopper type is one set of 50L removable 3-layer jacket heating mixing filling tank, servo motor driving, and filling volume and speed are adjustable, filling accuracy is +-0.5% ml, piston filling system with U shape design, changeover time is 15-20 minutes, heating system is through heating oil in the tank, then to heat the product.
• Automatic feeding wiper by vibrator, different wipers, adjust slightly, no need to change the vibrator. As long as the material is hard, PE material is ok
• Automatic pressing wiper tighten, sensor check, no wiper, machine stop
• Automatic feeding brush by vibrator, loading into bottles, and pre-capping, can set brush insert times according to the requirement

• Automatic capping, servo motor control, capping speed& torque are adjustable
• Automatic discharge finished product on the conveyor
• Side and bottom 2 in 1 labeling machine---optional
• Laser coding machine---optional
• Weighing machine---optional
• One set removable 50L 3 layers jacket heating mixing tank (Tank lifting driving by motor), Pneumatic lift for lid, Level sensor for automatic feeding
• Rotary table type,table speed adjustable
• Air system and electricity system separated
• 16 pucks holders,POM materials and customized as bottle shape and size
• Component parts brand: PLC& Touch screen is Mitsubishi, Switch is Schneider, Relays is Omron, Servo motor& Sensor is Panasonic, Pneumatic components is SMC, CUH vibrator
• Options
• Extra set removable 50L heating mixing tank for fast changeover
• Extra one size of pucks

3.Specifications and Parameters

4.Details

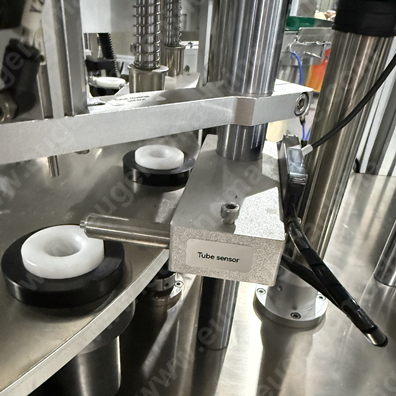

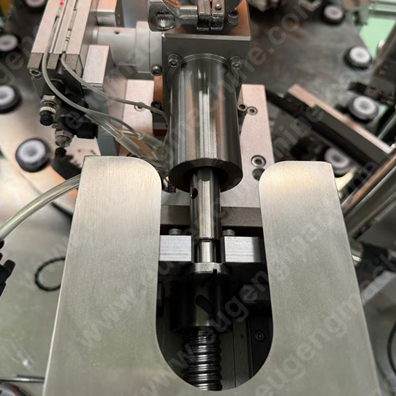

Feed empty tubes automaticly	Automatic correct bottle direction	Bottle reverse direction sensor	Piston filling system

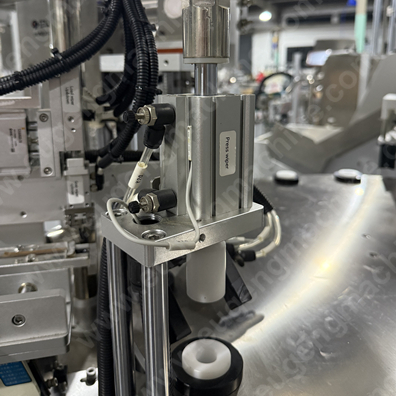

Automatic feeding& loading wiper	Automatic press wiper	Automatic feeding brush	Automatic pick up&pre-capping brush

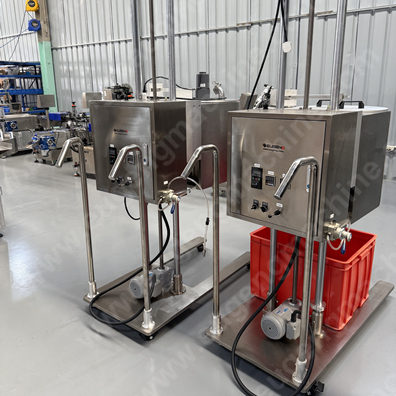

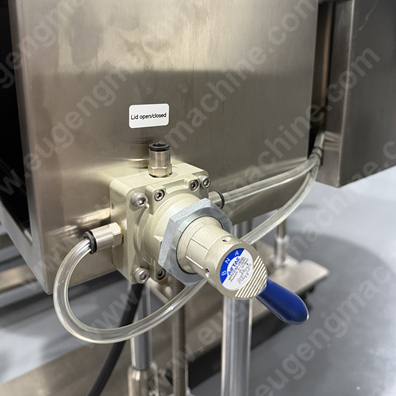

Automatic screw capping tighten	Automatic discharge finished products	Removal 50L heating mixing filling tank	Pneumatic lift for lid
