Automatic skincare filling capping machine
Automatic skincare filling capping machine
Automatic skincare filling capping machine
Automatic skincare filling capping machine
Automatic skincare filling capping machine
Automatic skincare filling capping machine
Automatic skincare filling capping machine
Automatic skincare filling capping machine

Automatic skincare filling capping machine

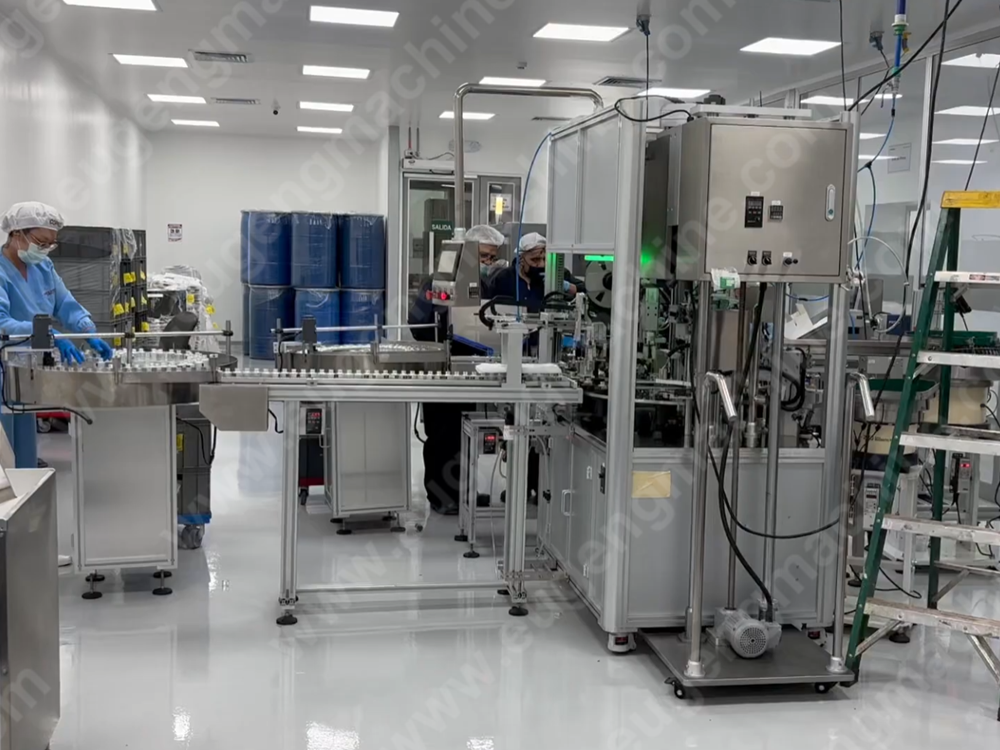

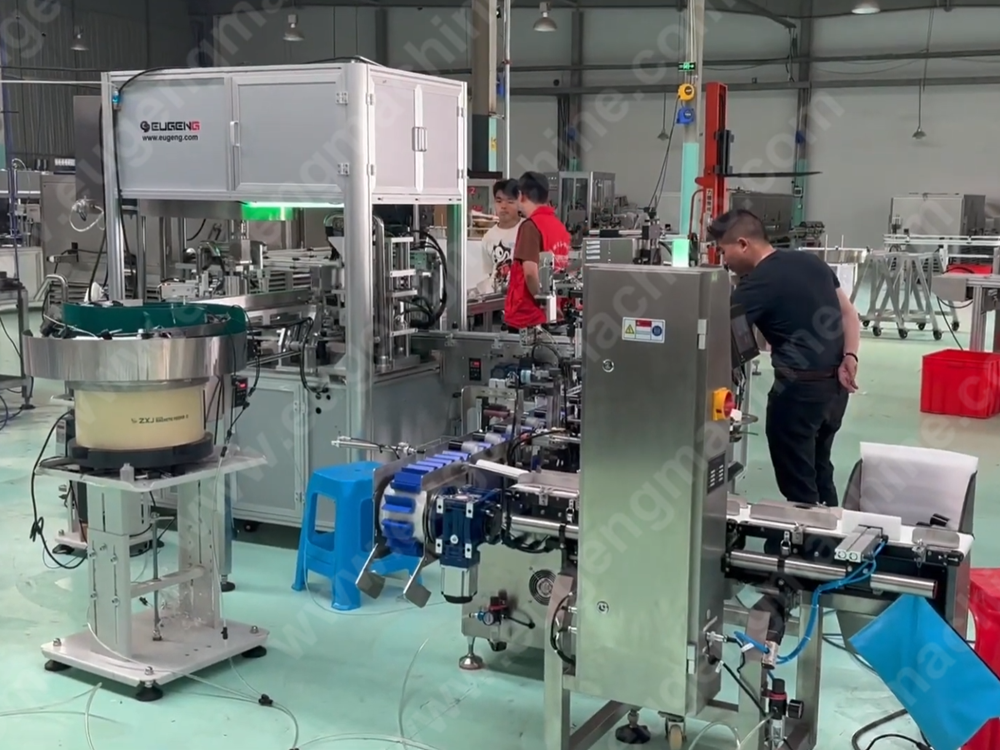

Model EGFC-01A is an automatic rotary type liquid filling and capping machine, widely applied for cosmetic liquid, liquid foundation, toner, lotion, serum, dropper bottle essential oil, nail polish etc. It is rotary type filling machine with 16 pucks holders and only one person operation.
Working process includes automatic loading empty bottle in puck, automatic filling, automatic loading spray pump, Automatic screw tighten, automatic loading outer cap, automatic press outer cap, automatic discharge.

Get a Quote
Product Description

1. Target Products

Liquid foundation concealer filling machine (2).jpg Double side labeling machine4.jpg Skin care pump bottles filling machine (2).jpg Automatic rotary foundation filling machine (2).jpg

2. Descriptions

  • Automatic loading empty bottle into pucks by rotary table
  • Automatic filling
  • Automatic loading spray pump by vibrator
  • Automatic screw tighten
  • Automatic loading outer cap by rotary table
  • Automatic press outer cap
  • Automatic discharge finished product
  • Side and bottom 2 in 1 labeling machine---optional
  • Laser coding machine---optional
  • Weighing machine---optional
  • One set of a removable 50L 3-layer jacket heating mixing tank (Tank lifting driven by motor), Pneumatic lift for lid, Level sensor for automatic feeding
  • Rotary table type filling, table speed adjustable
  • The air system and the electricity system are separated
  • 16 puck holders, POM materials, and customized to a bottle shape and size
  • Parts brand: PLC& Touch screen is Mitsubishi, Switch is Schneider, Relays are Omron, Servo motor& Sensor is Panasonic, Pneumatic components are SMC, CUH vibrator
  • Options
  • Extra set of removable 50L heating mixing tank for fast changeover
  • Extra one size of pucks

3. Specifications and Parameters

Model No. EGFC-01A
Output capacity 30-35pcs/ min
Filling volume 0-50ml
No. of nozzle 1
No. of holders 16
No. of operator 1
Tank volume 50L/ set
Powder consumption 5.5kw
Air put 4-6kgf
Dimension(M) 2.6×1.8×2.1
Weight 650kgs

4.Details

Automatic skincare filling capping machine(7).png Automatic skincare filling capping machine(8).png Automatic skincare filling capping machine(9).png Automatic skincare filling capping machine(10).png

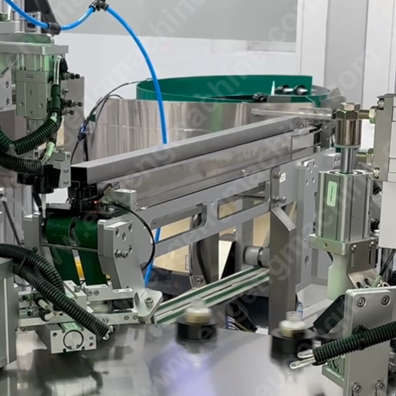

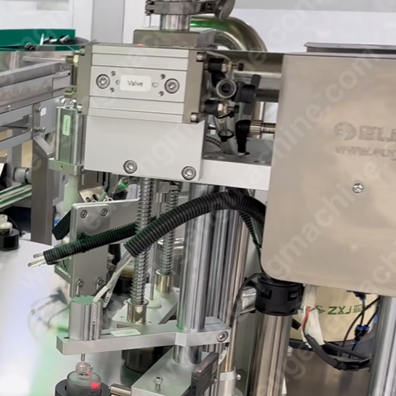

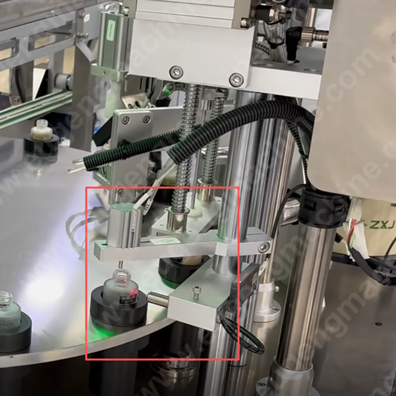

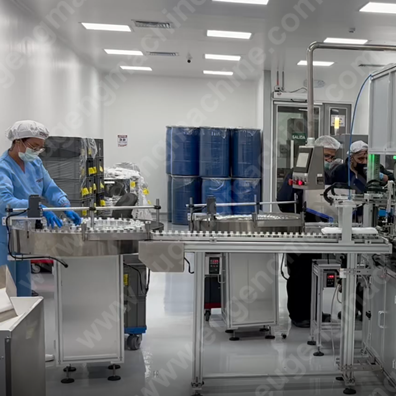

Automatic feeding empty tubes automatic Bottle reverse direction sensor Piston filling system Automatic feeding& loading sprayer
Automatic skincare filling capping machine(11).png Automatic skincare filling capping machine(12).png Automatic skincare filling capping machine(13).png Automatic skincare filling capping machine(14).png

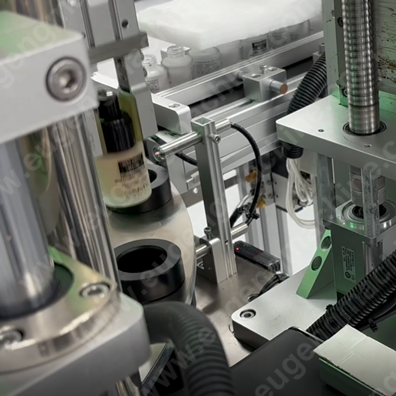

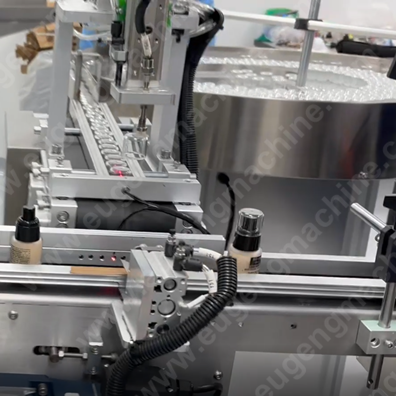

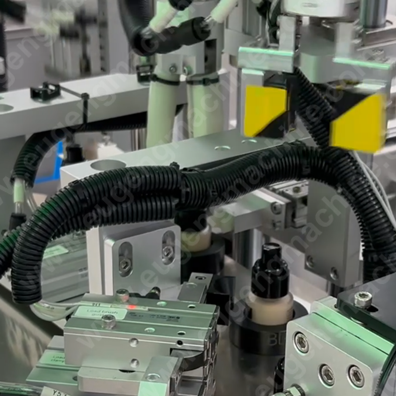

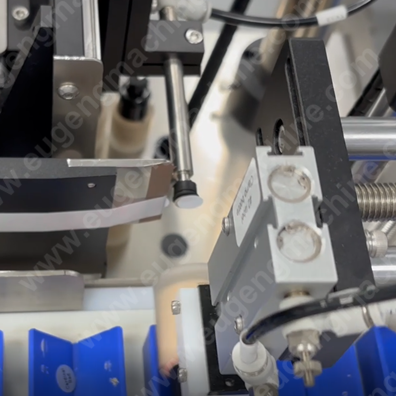

Automatic screw tighten Automatic pick up Automatic feeding outer caps Side and bottom 2 in 1 labeling machine
Automatic skincare filling capping machine(15).png Automatic skincare filling capping machine(16).png Lip gloss mascara foundation filling machine production line7.jpg Lip gloss mascara foundation filling machine production line8.jpg

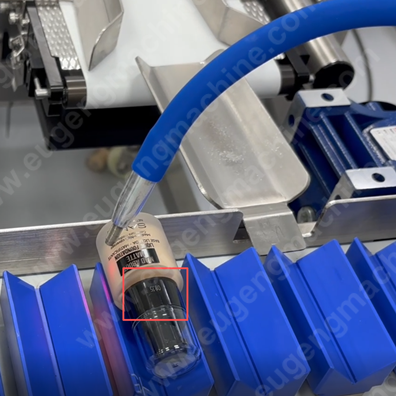

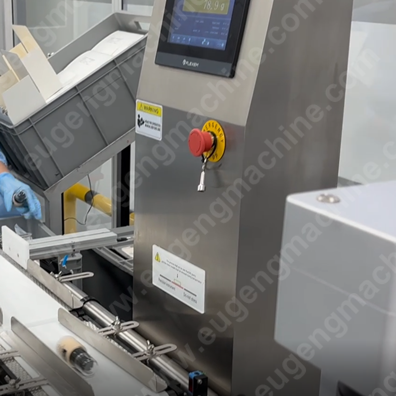

Laser printer Check weigher Removal 50L heating mixing filling tank Pneumatic lift for lid
