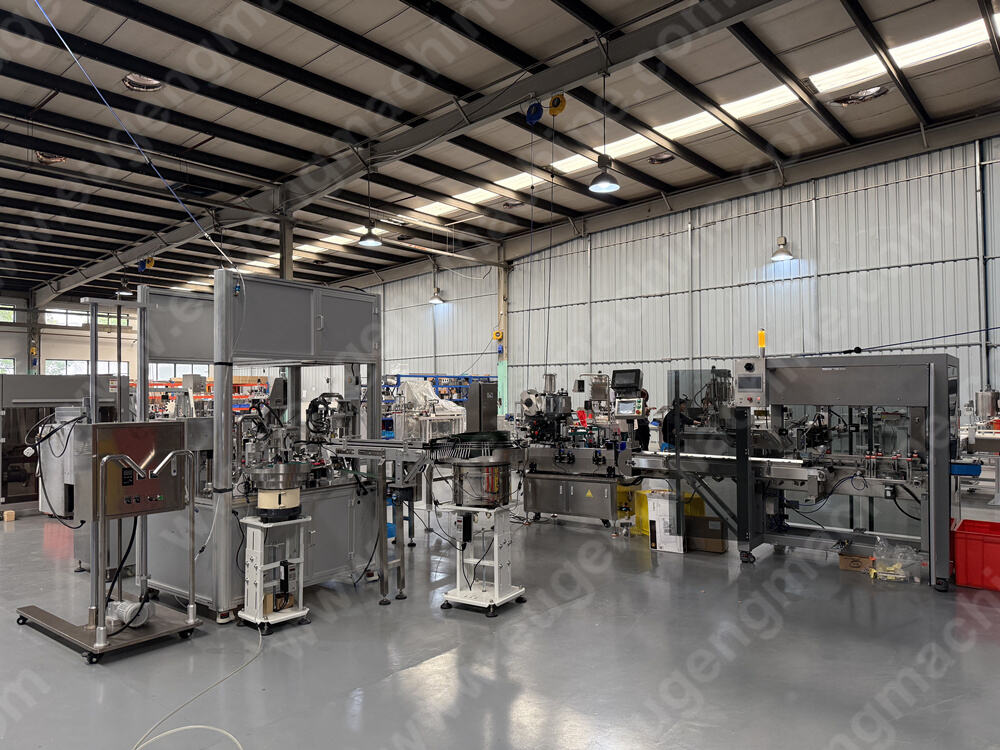

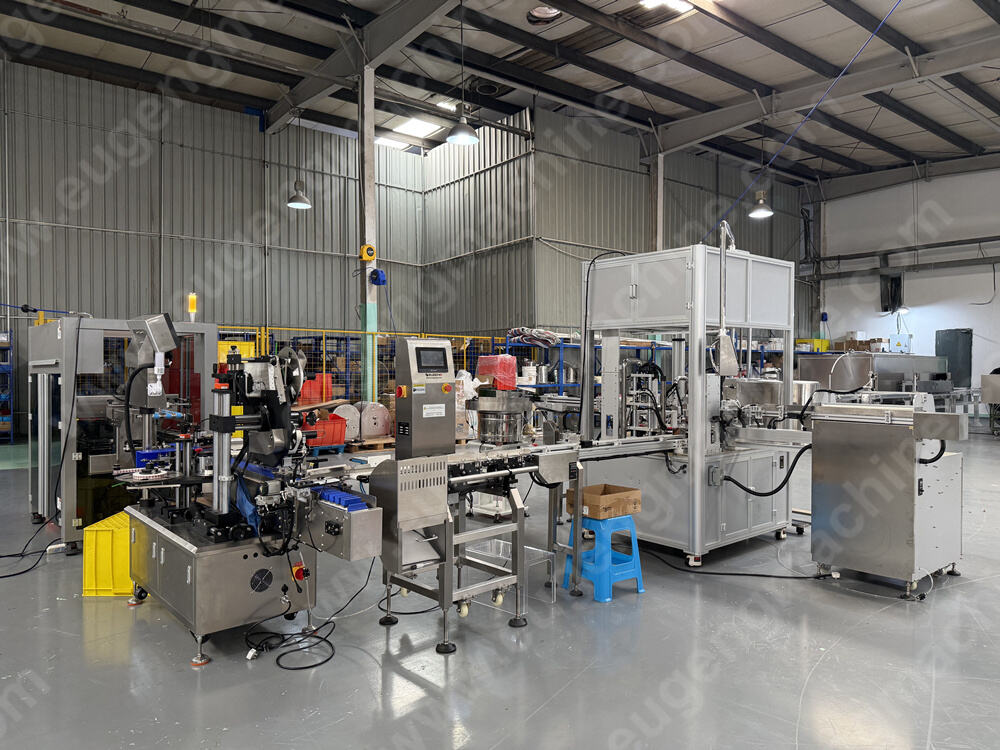

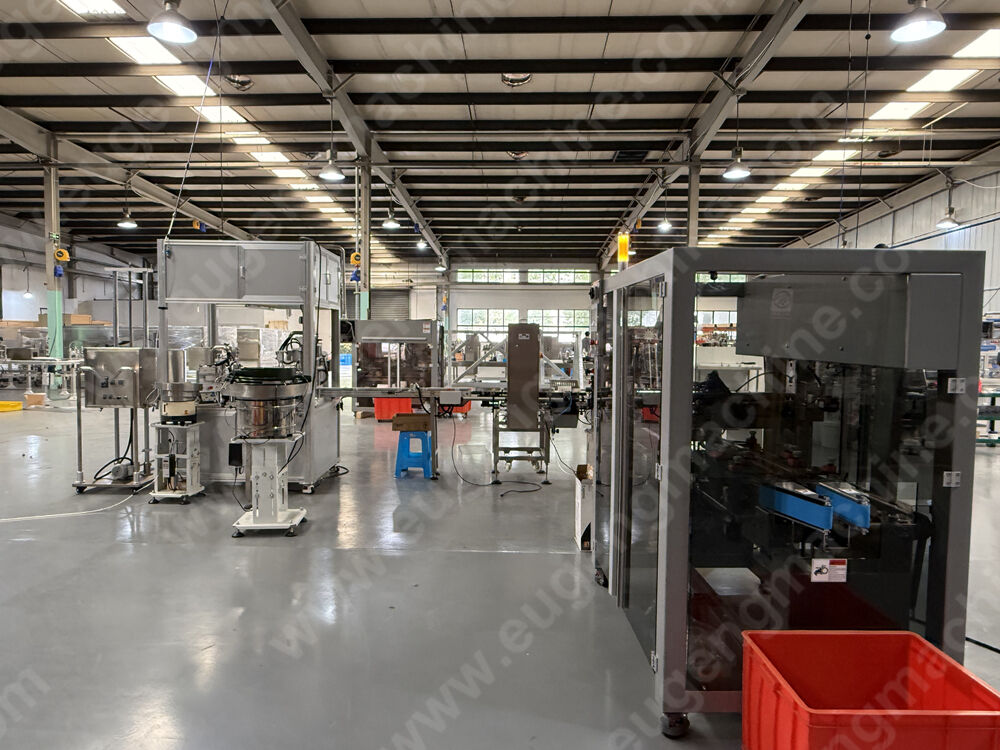

Full automatic lip gloss filling,capping,weighing,labeling,cartoning machine

1. Target Products

2. Descriptions

• Automatic loading bottles into pucks, and with a guider, adjusts the bottle direction
• Automatic filling, hopper type is one set of 50L removable 3-layer jacket heating mixing filling tank, servo motor driving, and filling volume and speed are adjustable, filling accuracy is +-0.5% ml, piston filling system with U shape design, changeover time is 15-20 minutes, heating system is through heating oil in the tank, then to heat the product.

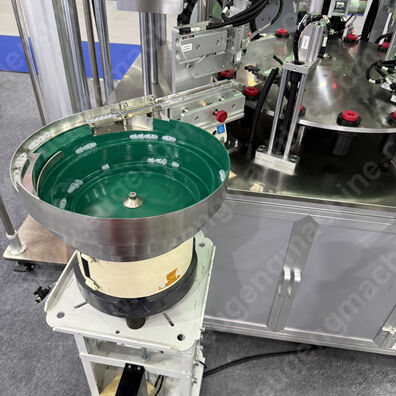

• Automatic feeding wiper by vibrator, different wipers, adjust slightly, no need to change the vibrator. As long as the material is hard, PE material is ok

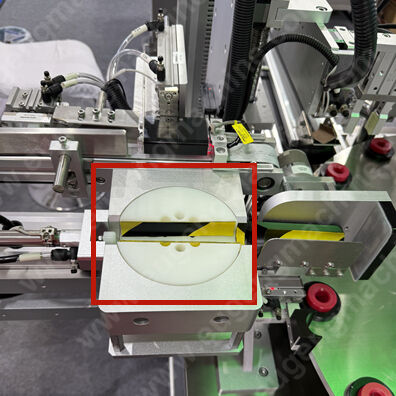

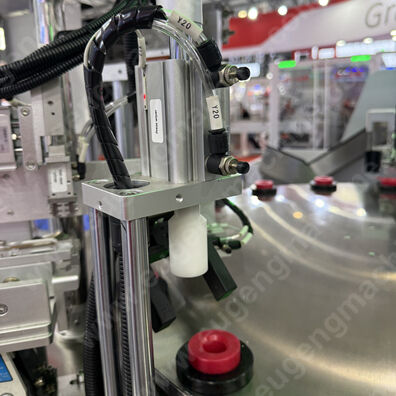

• Automatic pressing wiper tighten, sensor check, no wiper, machine stop

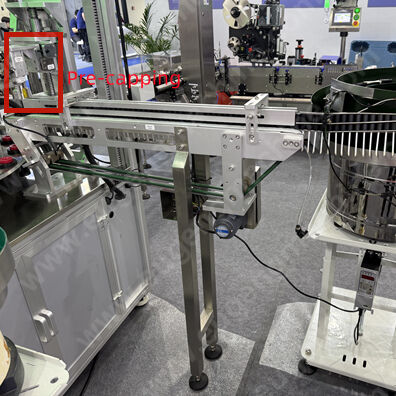

• Automatic feeding brush by vibrator, loading into bottles, and pre-capping, can set brush insert times according to the requirement

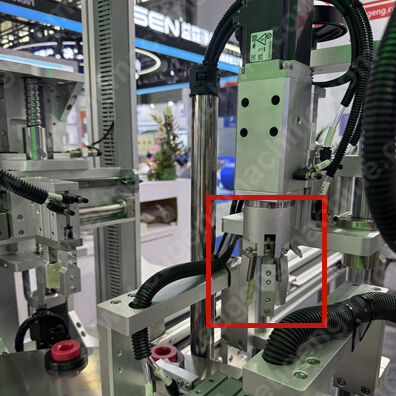

• Automatic capping, servo motor control, capping speed& torque are adjustable
• Automatic discharge finished product on the conveyor

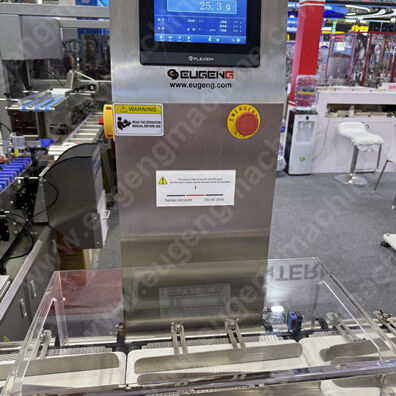

• Automatic weighing, reject unqualified products, accuracy +-0.1g
• Automatic labeling, Sensor checking, Servo motor hold bottles rotation for automatic correct labeling area make sure labeling on blank area; Online batch coding printing on blank label for side labeling (SmartDateX45 printer); Sensor with LRD2100 for transparent and normal sticker on side labeling and bottom labeling; Sensor checking, if miss labeling from bottom or side, push out the reject pcs
• Automatic cartoning, conveyor holder size adjustable as product size; vacuum pick paper box, and big angle pick box ensure high accuracy; no carton box, automatic stop, and alarm; no product, carton box will wait and alarm
• Laser coding machine---optional
  You can send us tube samples for the product

• Advantages:
• Ceramic valve core
• All parts in contact with products are SUS316, food-grade, and compatible with almost all products.
• Rotary table type filling, table speed adjustable
• The air system and the electricity system are separated
• 16 puck holders, POM materials, and customized to a bottle shape and size
• Parts brand: PLC& Touch screen is Mitsubishi, Switch is Schneider, Relays are Omron, Servo motors are Mitsubishi, Sensors are Panasonic, Pneumatic components are SMC, CUH vibrator
• Options
• Heating mixing tank(mainly applied to the foundation)
• Pressure tank
• Extra filling valve, easy to clean
• Vibrator for different bottles
• Accessories for different bottles, such as pucks, guider, and others

3. Specifications and Parameters

4.Details

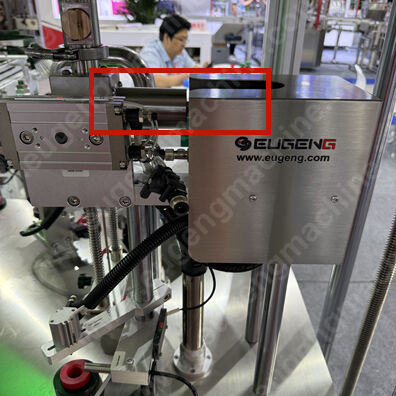

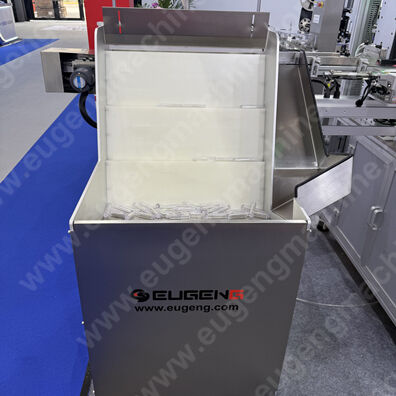

Automatic feeding&loading tubes	Bottle reverse direction sensor	Piston filling system	Automatic feeding& loading wipers

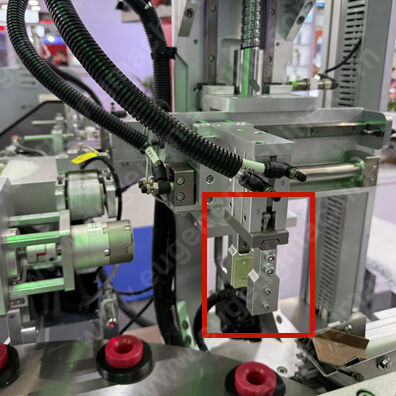

Automatic pressing wiper tighten	Automatic loading brush and pre-capping	Automatic screwing cap tighten	Automatic pick up products on conveyor

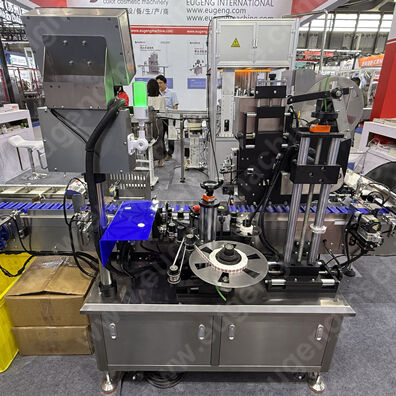

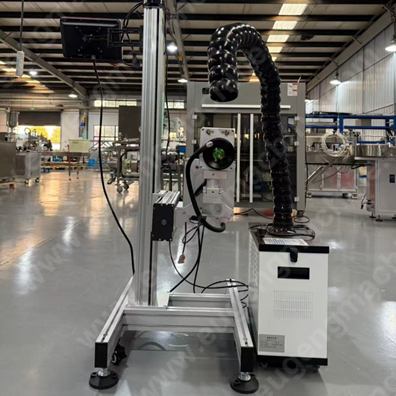

Laser coding machine	Check weigher	Side and bottom 2 in 1 labeling machine	Cartoning machine

5.Reference Video
